Geogrid

Bidirectional stretch geogrid

Excellent biaxial tensile performance: It can provide strong tensile strength in both longitudinal and transverse directions, thereby more effectively limiting the displacement and deformation of soil.

Good toughness and fatigue resistance: able to withstand repeated loads and less prone to fatigue failure.

High chemical stability: It has good tolerance to chemicals such as acids, bases, and salts.

The application of biaxial tensile geogrid is very extensive:

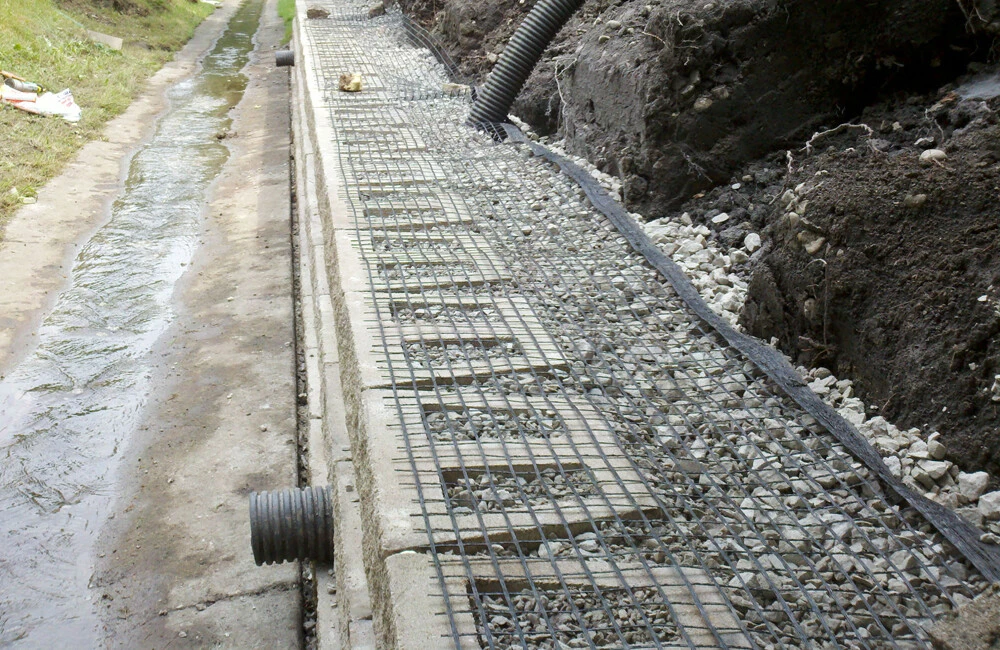

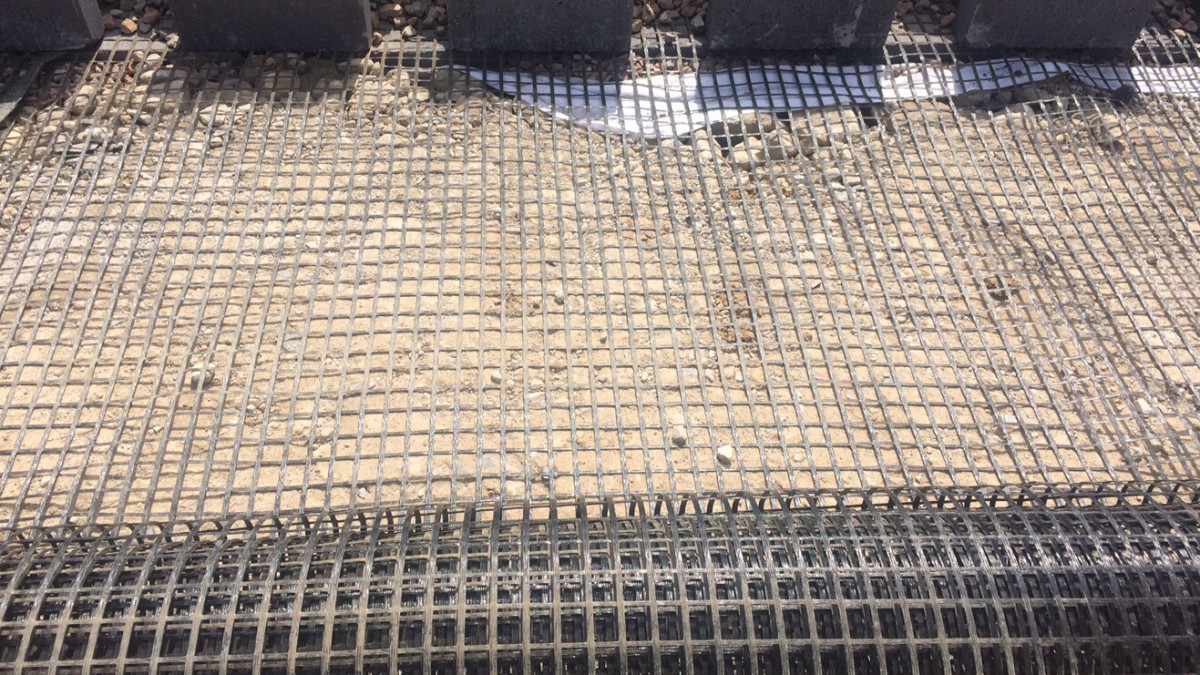

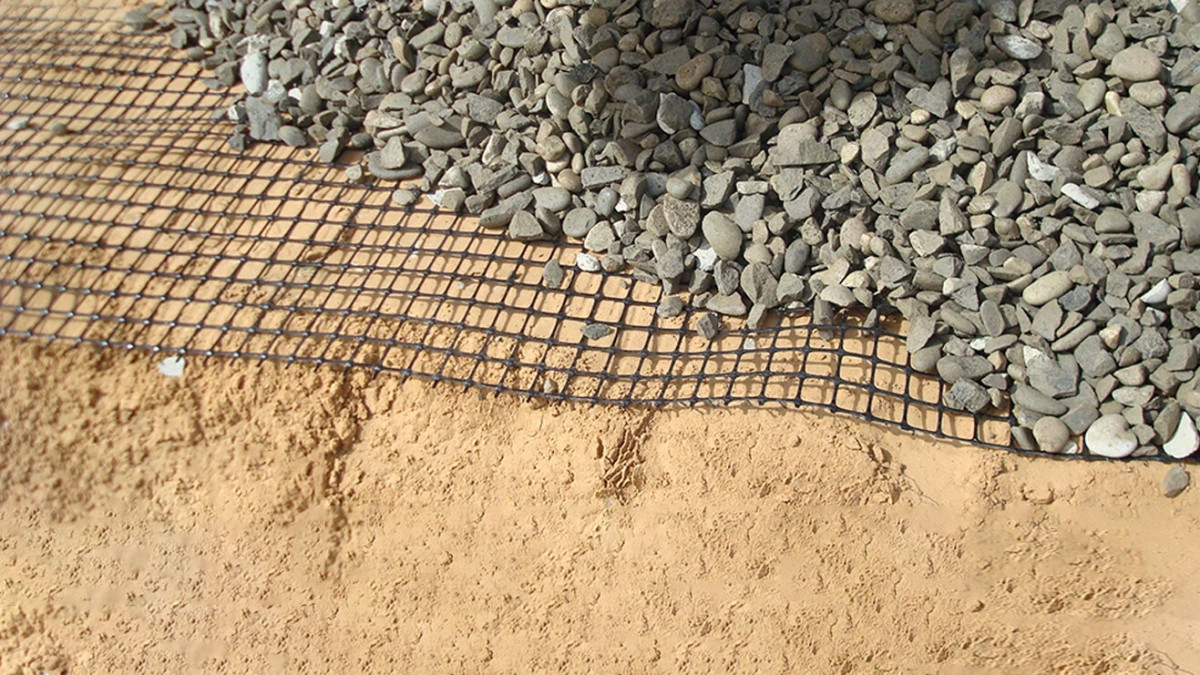

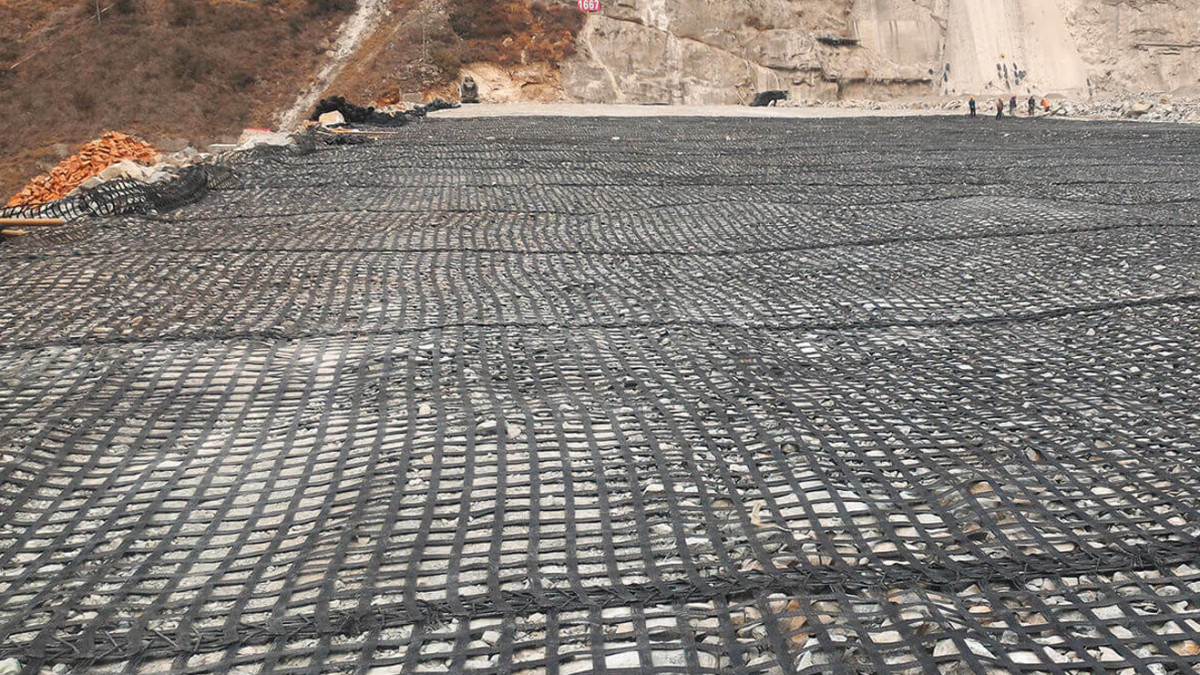

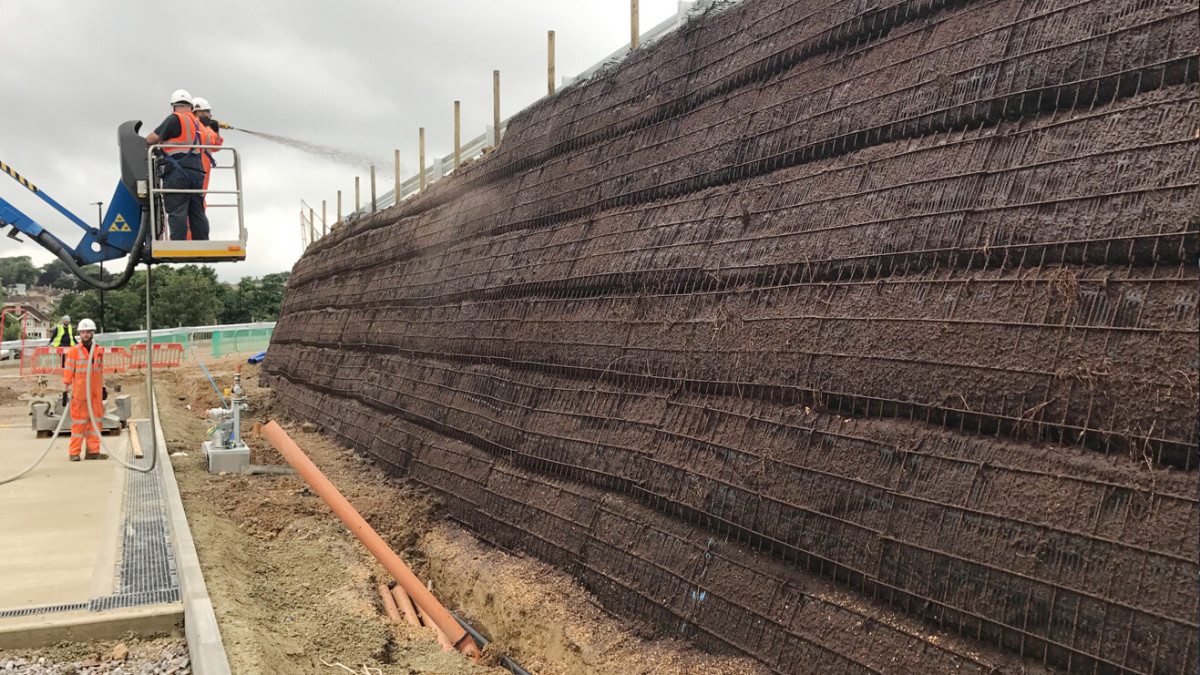

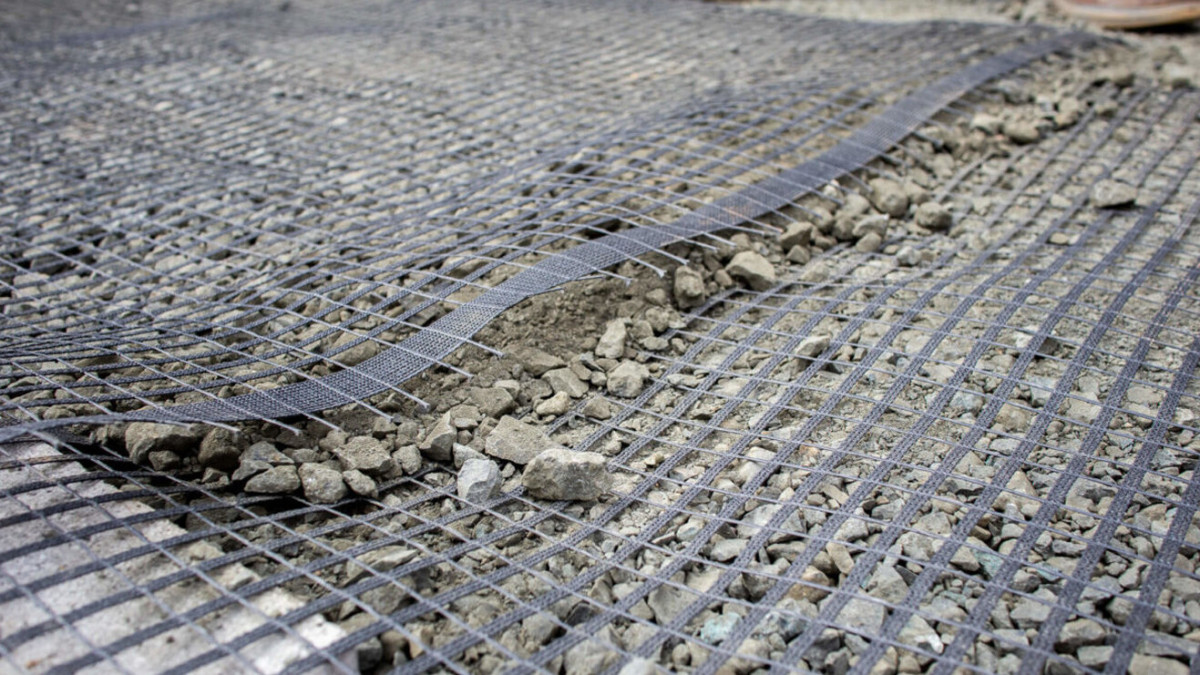

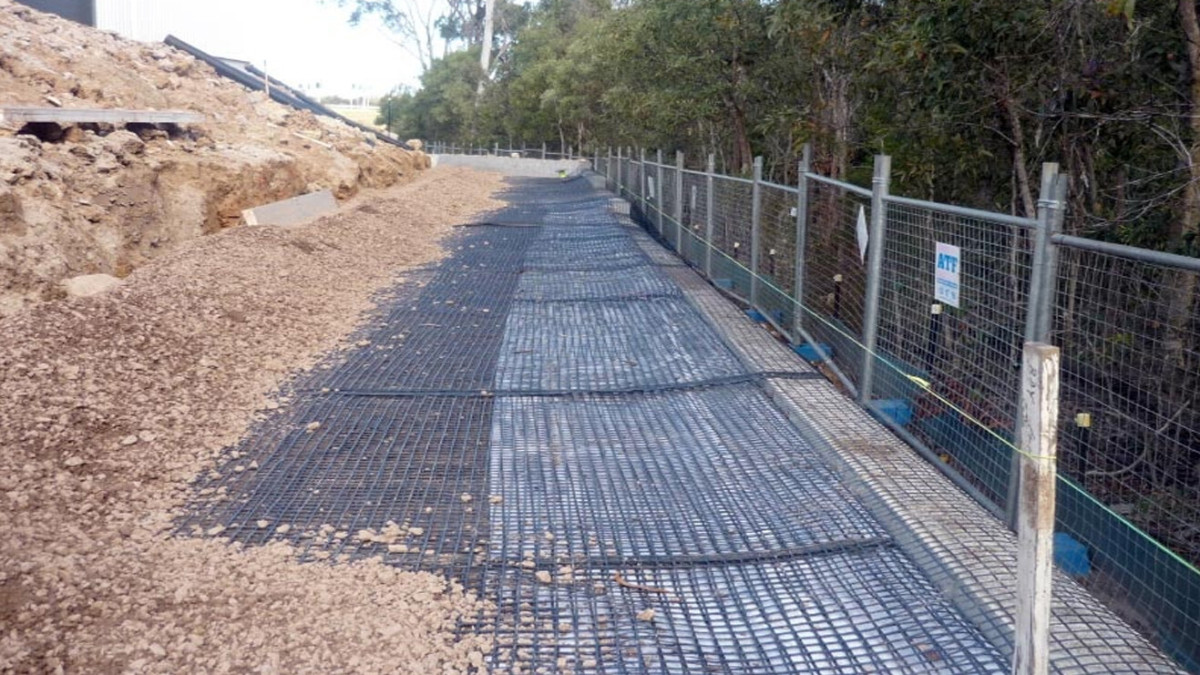

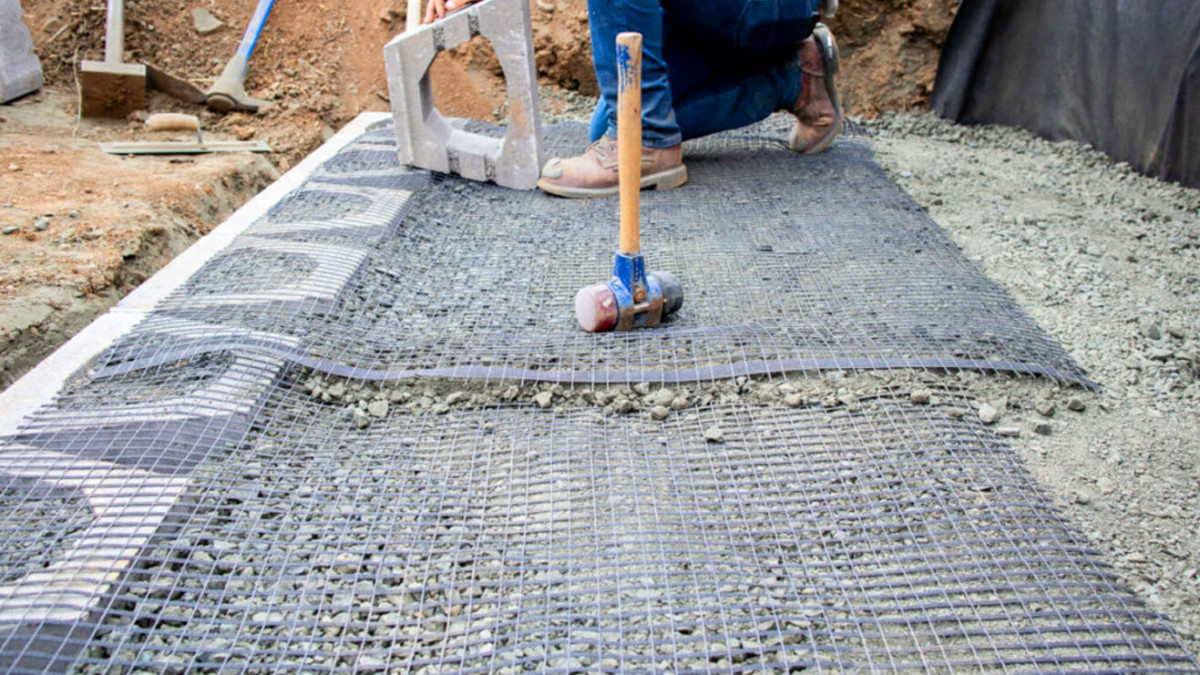

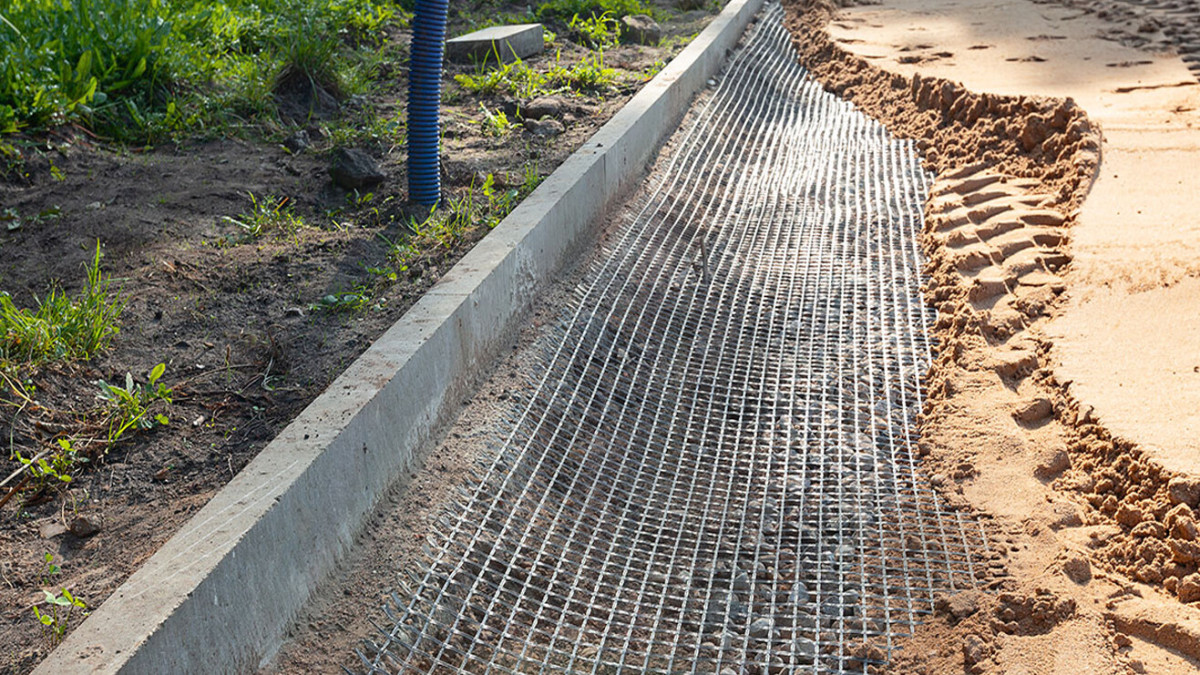

Highway and railway construction: used to enhance the stability of the roadbed, reduce road cracks and settlement.

Water conservancy engineering: such as reinforcement and anti-seepage of dams and channels.

Land improvement and reclamation: Improving the structure and mechanical properties of soil.

Ask questions

FREQUENTLY ASKED QUESTIONS



What types of geogrids are there?

Common ones include plastic geogrids (including unidirectional plastic geogrids and bidirectional plastic geogrids), steel-plastic geogrids, fiberglass geogrids, etc.



What is the service life of geogrids?

Under normal use and environmental conditions, it can generally be used for more than 20 years, but the actual life span will be affected by factors such as material quality, use environment, and construction quality.



What are the differences in the performance characteristics of different types of geogrids?

Plastic geogrids have the characteristics of light weight, high strength, and corrosion resistance; steel-plastic geogrids combine the high strength of steel and the corrosion resistance of plastics; fiberglass geogrids have high tensile strength and high temperature resistance.



What special environments can geogrids adapt to?

For example, it can be used in acidic and alkaline soil environments, high-cold areas, humid environments, etc., but products with corresponding materials and performance should be selected.



What is the impact of the aperture size of geogrids?

The aperture size will affect the interlocking effect and drainage performance with the soil. Moderate apertures can better play a reinforcing role.

BENEFITS & FEATURES

Quality product

Competitive pricing

Customized solutions

Fast delivery

General Service

Environmental friendly

SPECIFICATIONS

Ltem	Tensile strength KN/m		Elongation Rate %		Tensile strength with 2% Srain KN/m		Tensile strength with 5% Srain KN/m
Ltem	Logitudinal	Traverse	Logitudinal	Traverse	Logitudinal	Traverse	Logitudinal	Traverse
TGSG15-15	≥15	≥15	≤13	≤16	≥5	≥7	≥8	≥10
TGSG20-20	≥20	≥20	≤13	≤16	≥8	≥10	≥10	≥13
TGSG25-25	≥25	≥25	≤13	≤16	≥8	≥11	≥11	≥15
TGSG30-30	≥30	≥30	≤13	≤16	≥12	≥13	≥15	≥15
TGSG35-35	≥35	≥35	≤13	≤16	≥12	≥15	≥15	≥18
TGSG40-40	≥40	≥40	≤13	≤16	≥13	≥16	≥16	≥20
