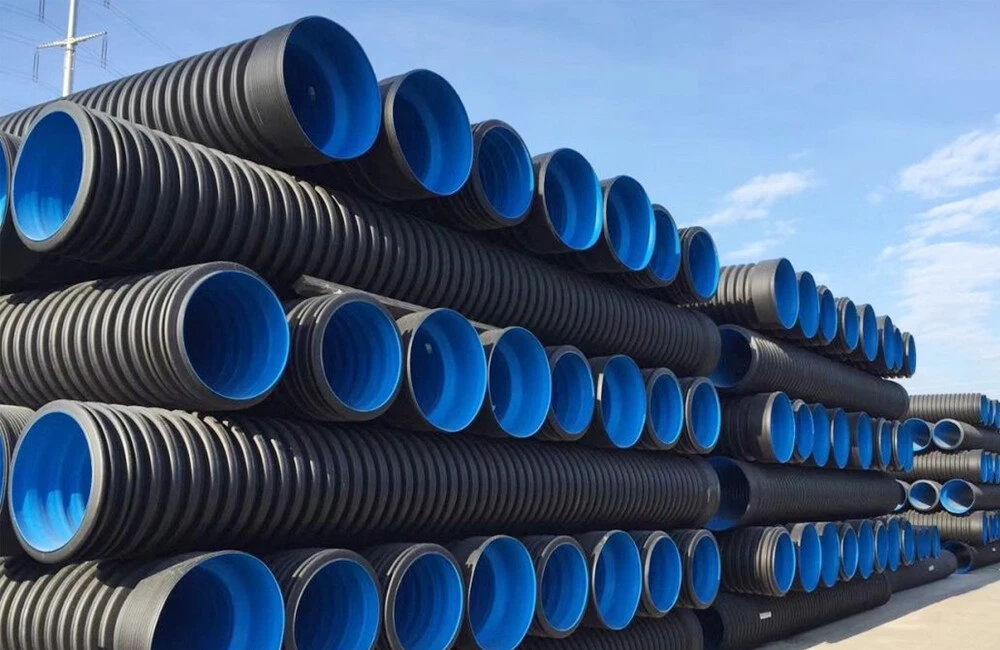

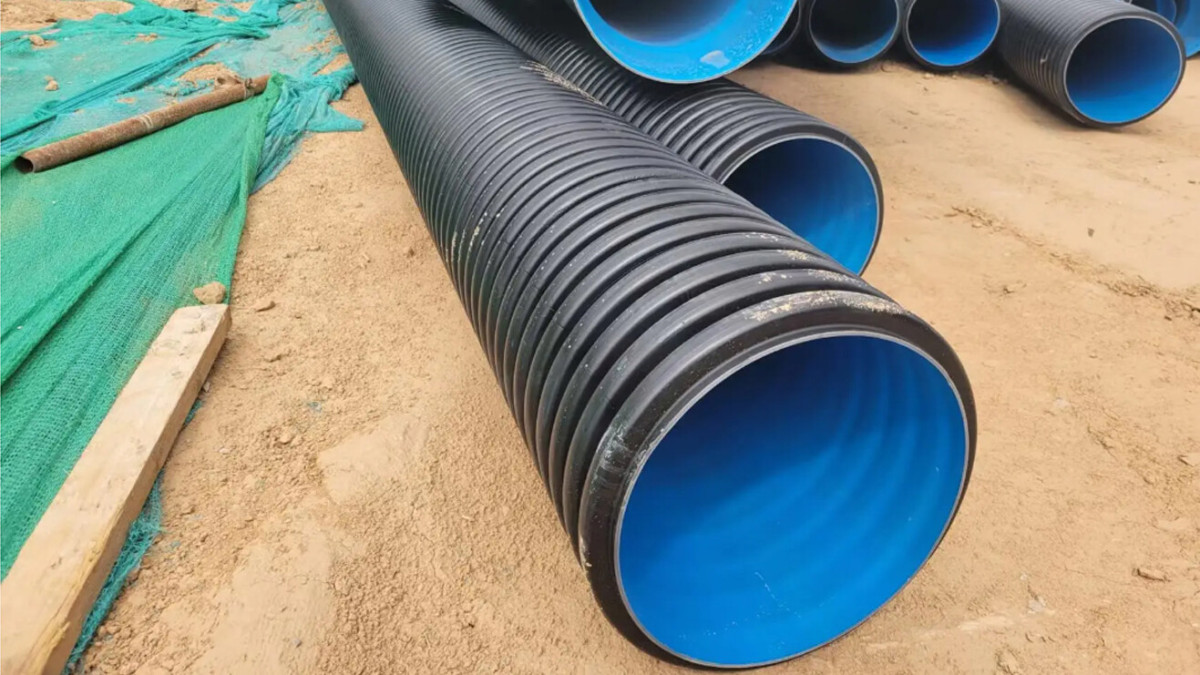

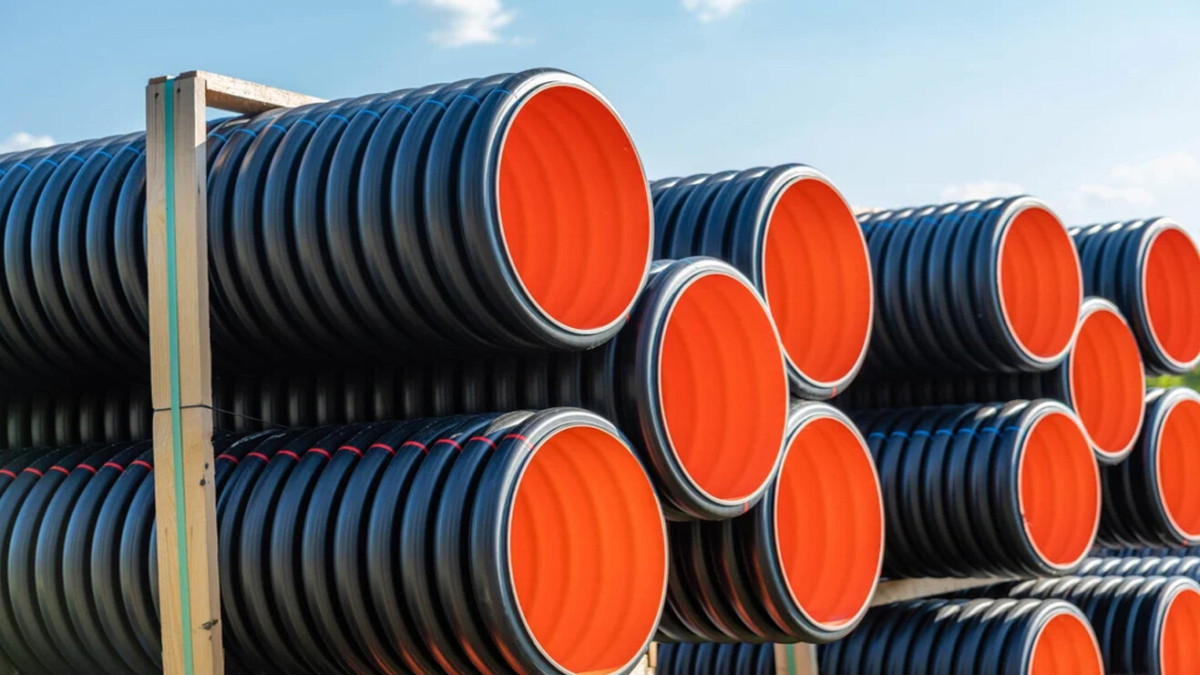

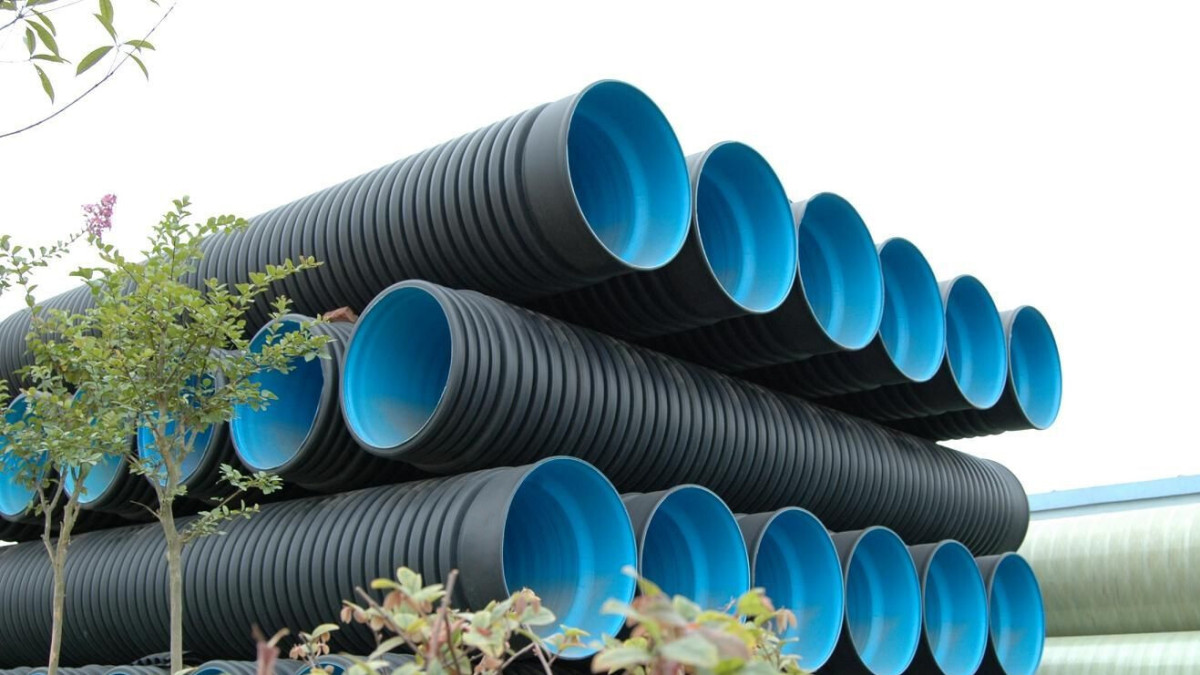

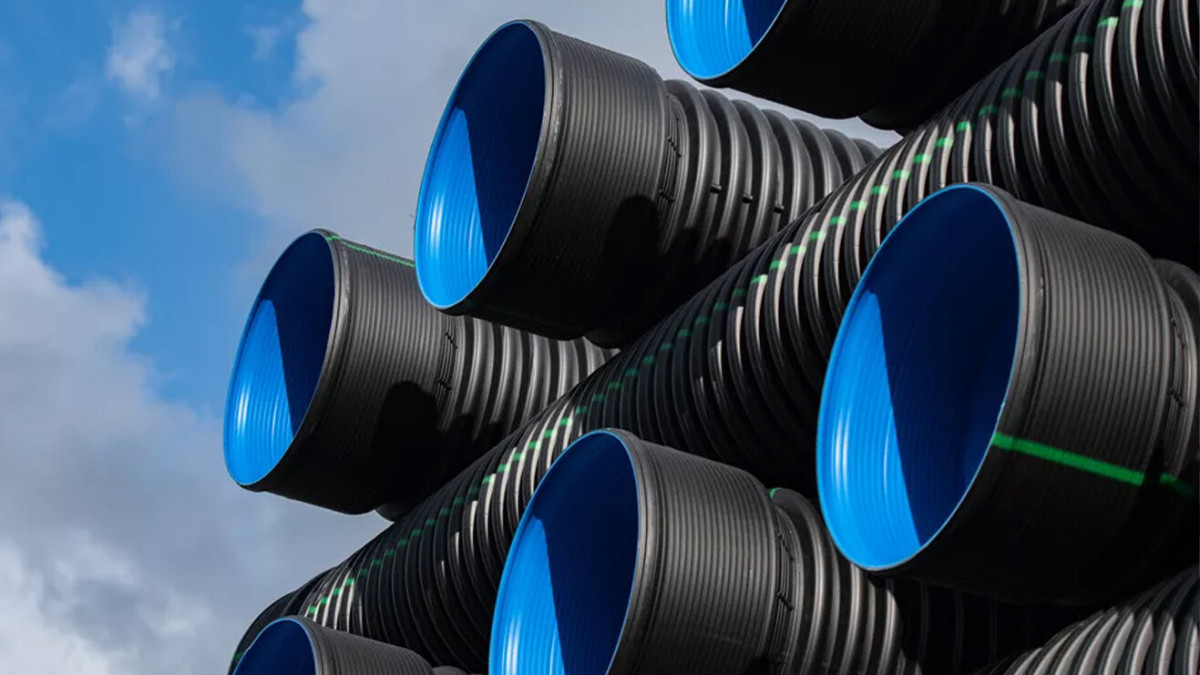

Hdpe double wall corrugated pipe
Its main features are:

1. Excellent resistance to external pressure: The unique double-wall structure enables it to withstand greater external pressure and is not easy to deform.

2. Large flow: The inner wall is smooth, the water flow resistance is small, and the water flow capacity is strong.

3. Good chemical stability: Acid and alkali resistant, corrosion resistant, and can adapt to a variety of harsh environmental conditions.

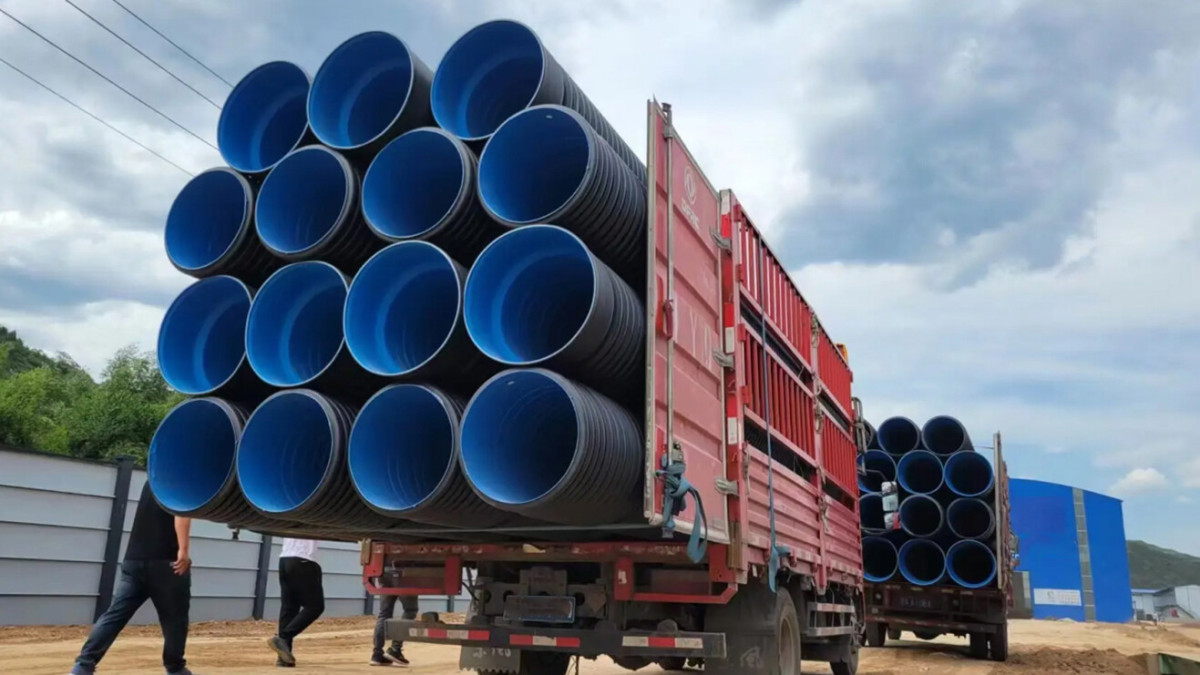

4. Light weight and convenient construction: easy to transport and install, reducing construction costs and labor intensity.

2. Low cost: Compared with traditional pipes, it has a higher cost performance.

HDPE double-wall corrugated pipe has many application areas:

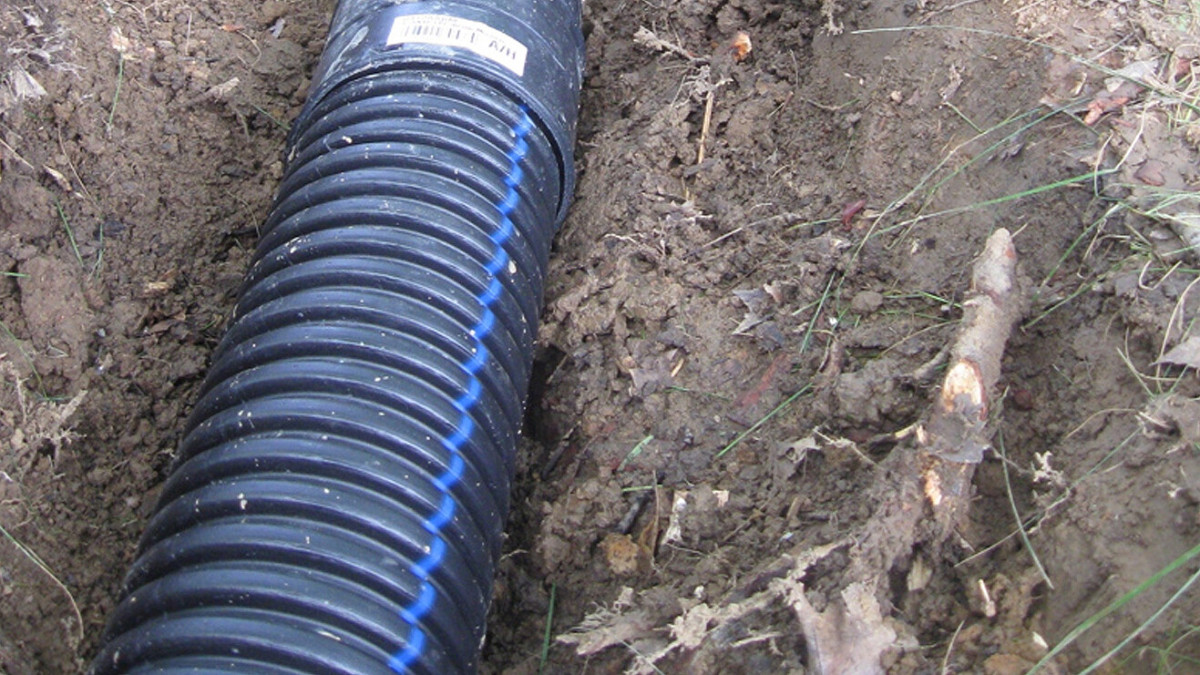

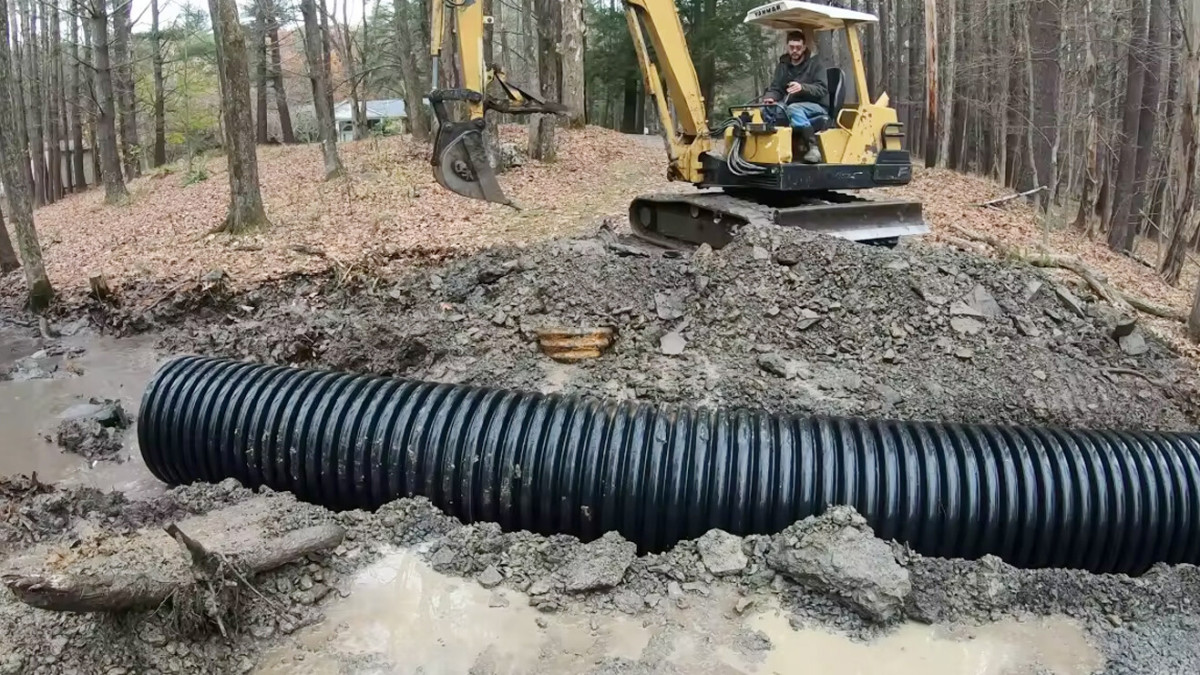

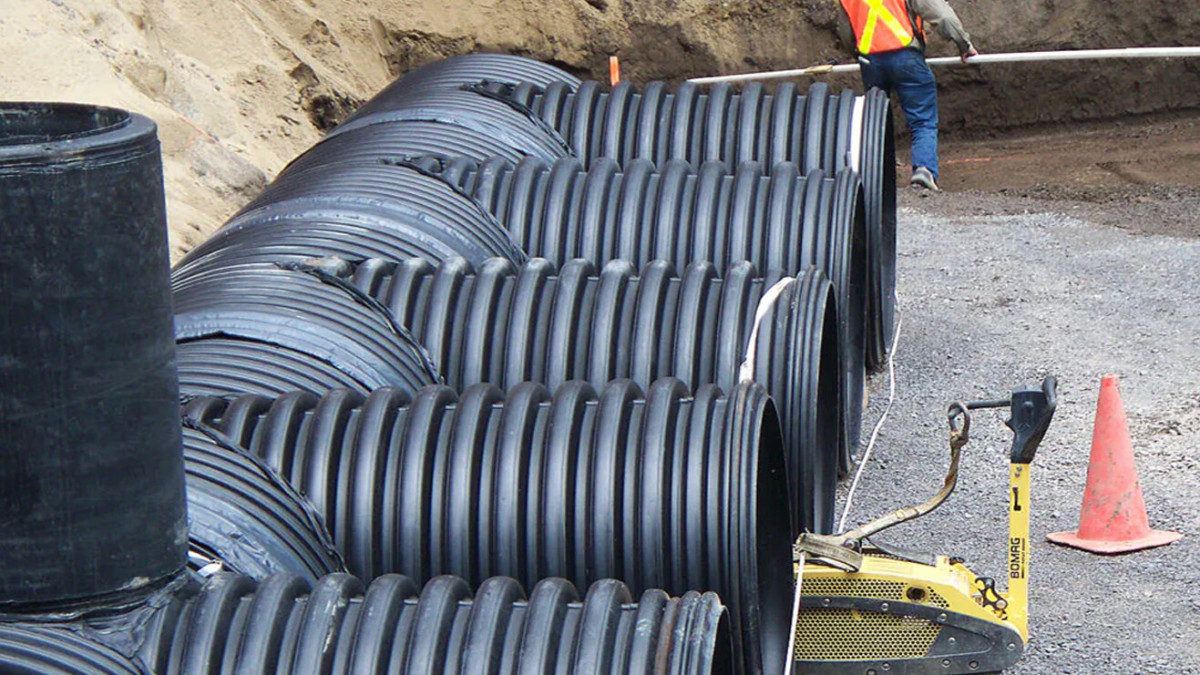

1. Municipal drainage: used for urban sewage and rainwater discharge pipeline systems.

2. Farmland irrigation: transport farmland water to ensure the irrigation needs of crops.

3. Communication cable sheath: protect communication cables from external damage.

Hdpe double wall corrugated pipe

Ask questions

Submit


















FREQUENTLY ASKED QUESTIONS

How long is the service life?

It can reach more than 50 years under normal use.

What are the connection methods?

Common ones include hot melt, electric melt, flange connection, etc.

How much pressure can it withstand?

The pressure level varies, depending on the pipe diameter and wall thickness.

What are the specifications of HDPE geotubes?

There are many specifications for pipe diameter, wall thickness, and length, which can be selected as needed.

What is the main use?

Commonly used for drainage, sewage discharge, oil transportation, etc.Commonly used for drainage, sewage discharge, oil transportation, etc.

BENEFITS & FEATURES

Quality product
Competitive pricing
Customized solutions
Fast delivery
General Service
Environmental friendly

SPECIFICATIONS

nominal outside diameterDN/ON

Minimum average outer diameter dcm.min

Maximum average outer diameter dcm.min

Minimum Average Inner Diameter dcm.min

Minimum layer wall thickness emin

Minimum inner wall thickness  e1min

length of engagement

amin

110109.4110.4901.00.832
125124.3125.41051.11.035
160159.1160.51341.21.042
200198.8200.61671.41.150
250248.5250.82091.71.455
315313.2316.02631.91.662
400397.6401.23352.32.070
500497.0501.54182.82.880
630626.3631.95273.33.393
800795.2802.46694.14.1110
1000994.01003.610055.05.0130
12001192.81203.610055.05.0150
